Q10F5ANZZRGB12ECA

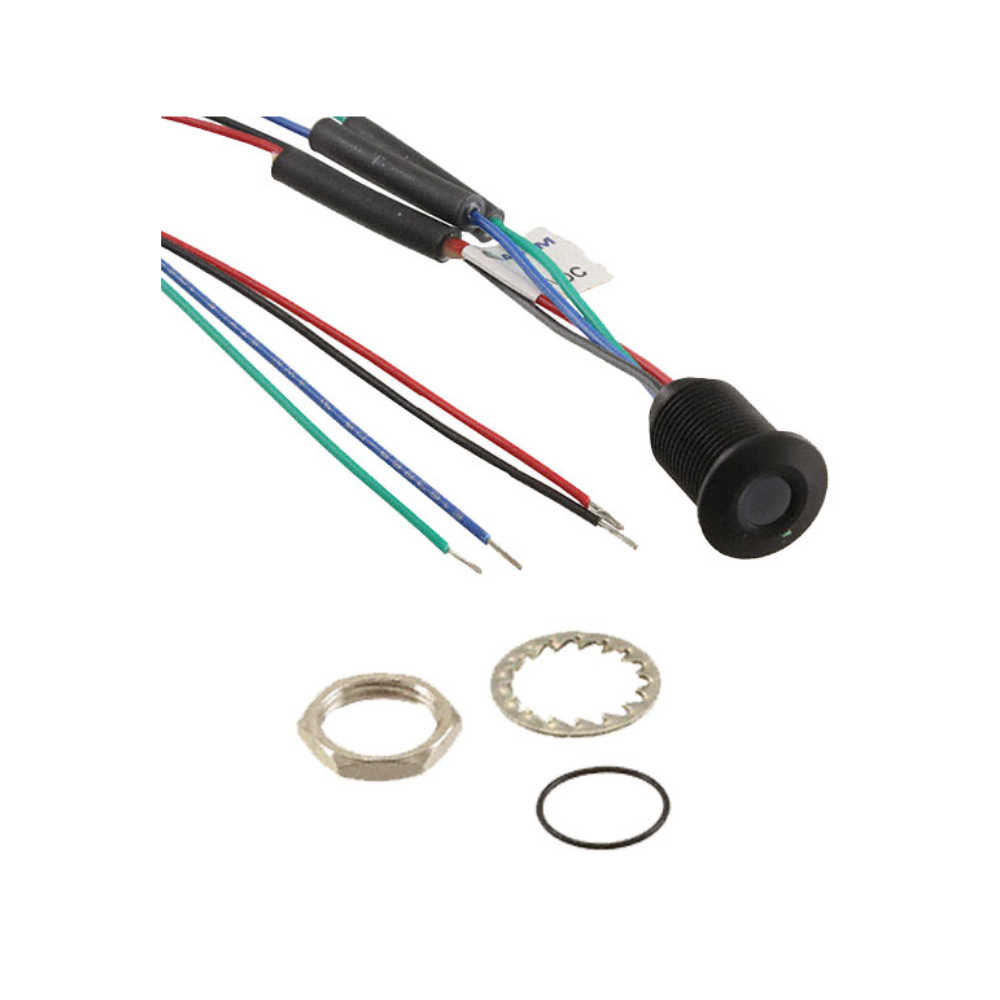

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: FLUSH BLKANO RGB 12VDC IP67
- Manufacturer: APEM
- Length: 0 mm
- Series: Q10
- Product Status: Active
- Termination Style: Wire Leads - 7.87" (200.00mm)
- Panel Cutout Dimensions: 0.394" (10.00mm)
- Ingress Protection: IP67
- Features: -
- Type: LED
- Lamp Color: Red, Green, Blue (RGB)
- Lens Color: Clear
- Lens Transparency: Diffused
- Ratings: DC
- Voltage: 12V
- Current: 20mA Red, 20mA Green, 20mA Blue
- Panel Cutout Shape: Round
- Lens Size: 7.80mm Dia
- Lens Style: Round with Flat Top
- Millicandela Rating: 330mcd Red, 750mcd Green, 150mcd Blue
- Wavelength - Peak: -
- Viewing Angle: 60°
-
- Datasheet: BRVN-Q10F5ANZZRGB12ECA
