QPWF-200-48

Datasheet
QPWF-200-48

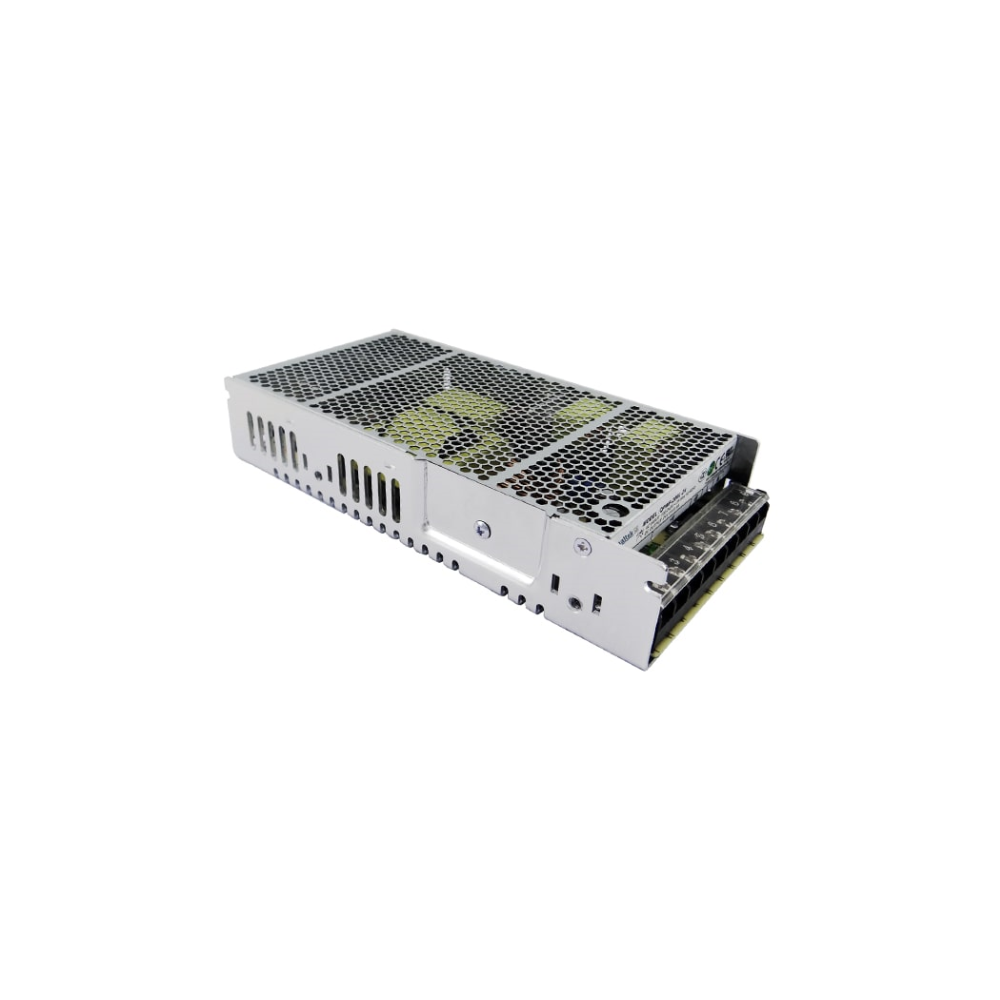

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.

  • Description: AC/DC CONVERTER 48V 200W
  • Manufacturer: Qualtek Electronics
  • Length: 0 mm
  • Series: QPWF-200 (200W)
  • Product Status: Obsolete
  • Features: Adjustable Output, DC Input Capable, Universal Input
  • Type: Enclosed
  • Operating Temperature: -20°C ~ 70°C (With Derating)
  • Mounting Type: Chassis Mount
  • Applications: ITE (Commercial)
  • Number of Outputs: 1
  • Power (Watts): 200W
  • Voltage - Isolation: 3 kV
  • Efficiency: 88.50%
  • Size / Dimension: 7.83" L x 3.90" W x 1.97" H (199.0mm x 99.0mm x 50.0mm)
  • Voltage - Output 1: 48V
  • Voltage - Output 2: -
  • Voltage - Output 3: -
  • Voltage - Output 4: -
  • Approval Agency: CB, CE, cURus
  • Voltage - Output 5: -
  • Voltage - Output 6: -
  • Voltage - Input: 90 ~ 264 VAC
  • Current - Output 1: 4.2 A
