R46KN4100JHN2M

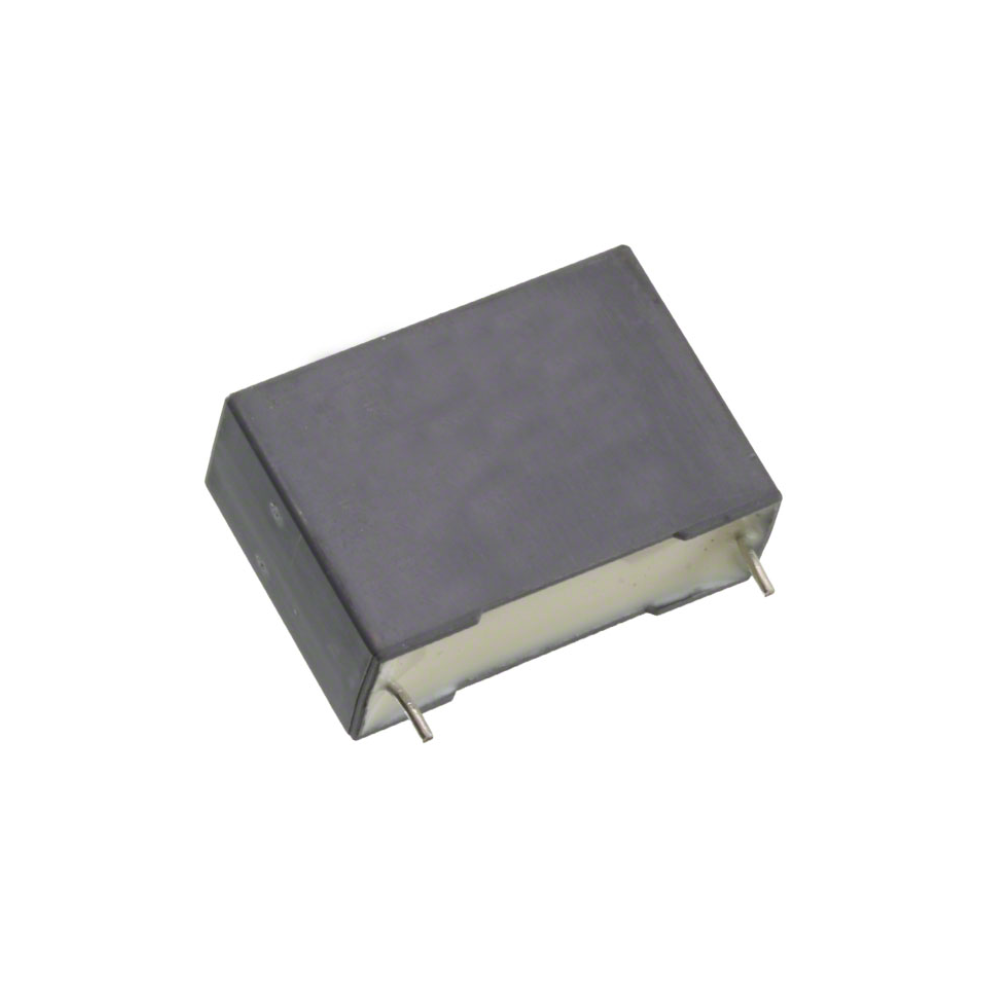

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: CAP FILM 1UF 20% 560VDC RADIAL
- Manufacturer: KEMET
- Length: 0 mm
- Series: R46
- Product Status: Active
- Operating Temperature: -40°C ~ 110°C
- Features: -
- Mounting Type: Through Hole
- Package / Case: Radial
- Applications: EMI, RFI Suppression
- Tolerance: ±20%
- Capacitance: 1 µF
- ESR (Equivalent Series Resistance): -
- Size / Dimension: 1.043" L x 0.394" W (26.50mm x 10.00mm)
- Height - Seated (Max): 0.732" (18.60mm)
- Lead Spacing: 0.886" (22.50mm)
- Ratings: X2
- Termination: PC Pins
- Voltage Rating - AC: 275V
- Voltage Rating - DC: 560V
- Dielectric Material: Polypropylene (PP), Metallized
-
- Datasheet: BRVN-R46KN4100JHN2M
