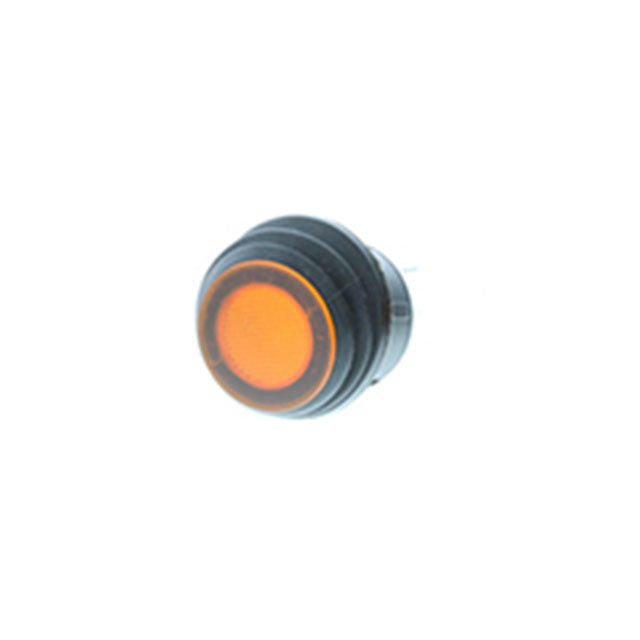

RA4-2A-DC-2-AL
-
BRVN:BRVN-RA4-2A-DC-2-AL
-
MPN:RA4-2A-DC-2-AL
-
MFR:
-
Description:4P DPST OFF-ON LED - IP65 DC
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: 4P DPST OFF-ON LED - IP65 DC
- Manufacturer: Switch Components
- Length: 0 mm
- Series: RA4
- Product Status: Active
- Mounting Type: Panel Mount, Snap-In
- Circuit: DPST
- Switch Function: On-Off
- Current Rating (Amps): 20A (DC)
- Voltage Rating - AC: -
- Voltage Rating - DC: 14 V
- Actuator Type: Round - Illuminated
- Illumination Type, Color: LED, Amber
- Illumination Voltage (Nominal): 14 VDC
- Termination Style: Quick Connect - 0.187" (4.7mm)
- Panel Cutout Dimensions: Circular - 20.20mm Dia
- Ingress Protection: IP65 - Dust Tight, Water Resistant
- Features: -
- Operating Temperature: -25°C ~ 85°C
- Color - Actuator/Cap: Amber
- Actuator Marking: No Marking
-
- Datasheet: BRVN-RA4-2A-DC-2-AL
