RDJ-0210A-CSMT

  • BRVN:
    BRVN-RDJ-0210A-CSMT
  • MPN:
    RDJ-0210A-CSMT
  • MFR:
  • Description:
    2.0 MM SMT DC POWER JACK

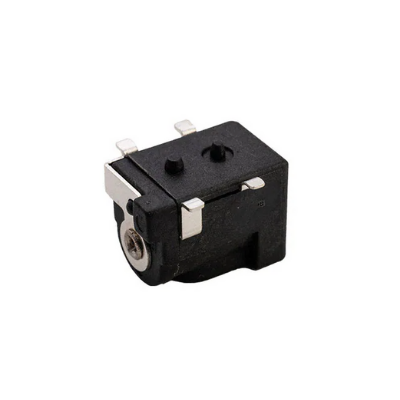

RDJ-0210A-CSMT

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.

  • Description: 2.0 MM SMT DC POWER JACK
  • Manufacturer: RDI Inc.
  • Length: 0 mm
  • Series: -
  • Product Status: Active
  • Shielding: Unshielded
  • Features: Board Guide
  • Mounting Type: Surface Mount, Through Hole
  • Ingress Protection: -
  • Operating Temperature: -25°C ~ 85°C
  • Termination: Solder, Solder Eyelet(s)
  • Current Rating (Amps): 3.5 A
  • Connector Type: Jack
  • Gender: Male
  • Industry Recognized Mating Diameter: 2.00mm ID (0.079"), 5.50mm OD (0.217")
  • Actual Diameter: 0.079" (2.00mm ID), 0.256" (6.50mm OD)
  • Number of Positions/Contacts: 2 Conductors, 3 Contacts
  • Internal Switch(s): Single Switch, Normally Closed
  • Mounting Feature: -
  • Insulation Color: -
  • Voltage - Rated: 24VDC
  • Mating Length/Depth: -
  • Material Flammability Rating: -
