RNS-66100183NL
-
BRVN:BRVN-RNS-66100183NL
-
MPN:RNS-66100183NL
-
MFR:
-

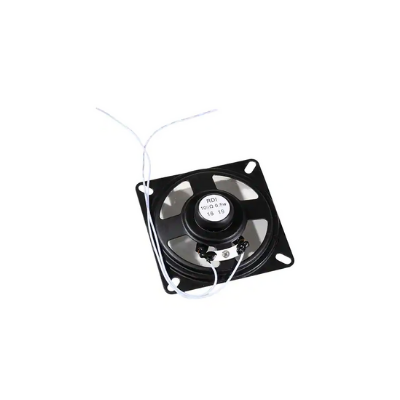

Description:SPEAKER
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: SPEAKER
- Manufacturer: RDI Inc.
- Length: 0 mm
- Series: -
- Product Status: Active
- Ingress Protection: -
- Technology: Magnetic
- Type: General Purpose
- Frequency Range: 310 Hz ~ 10 kHz
- Frequency - Self Resonant: 310Hz
- Impedance: 100 Ohms
- Efficiency - dBA: 86
- Efficiency - Testing: 1W/500mm
- Efficiency - Type: Sound Pressure Level (SPL)
- Power - Rated: 500 mW
- Power - Max: 1 W
- Port Location: Top
- Shape: Round, Square Frame
- Material - Cone: -
- Material - Magnet: -
- Ratings: -
- Termination: Wire Leads
- Size / Dimension: 2.598" L x 2.598" W (66.00mm x 66.00mm)
- Height - Seated (Max): 0.650" (16.50mm)
