RPR666N148100NL
-
BRVN:BRVN-RPR666N148100NL
-
MPN:RPR666N148100NL
-
MFR:
-
Description:SPEAKER

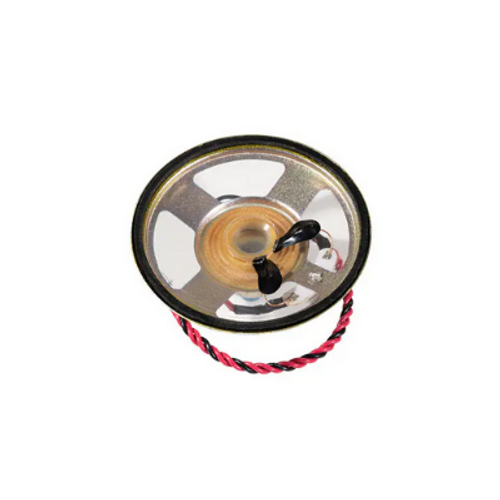

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: SPEAKER
- Manufacturer: RDI Inc.
- Length: 0 mm
- Series: -
- Product Status: Active
- Ingress Protection: -
- Technology: Magnetic
- Type: General Purpose
- Frequency Range: 350 Hz ~ 10 kHz
- Frequency - Self Resonant: 350Hz
- Impedance: 8 Ohms
- Efficiency - dBA: 88
- Efficiency - Testing: 1W/500mm
- Efficiency - Type: Sound Pressure Level (SPL)
- Power - Rated: 300 mW
- Power - Max: 500 mW
- Port Location: Top
- Shape: Round
- Material - Cone: Polyester, Polyethylene Terephthalate (PET)
- Material - Magnet: Nd-Fe-B
- Ratings: -
- Termination: Wire Leads with Connector
- Size / Dimension: 2.598" Dia (66.00mm)
- Height - Seated (Max): 0.811" (20.60mm)
