RYC8630-1M
-
BRVN:BRVN-RYC8630-1M
-
MPN:RYC8630-1M
-
MFR:
-
Description:IC PWR SWITCH 1:2 8SO

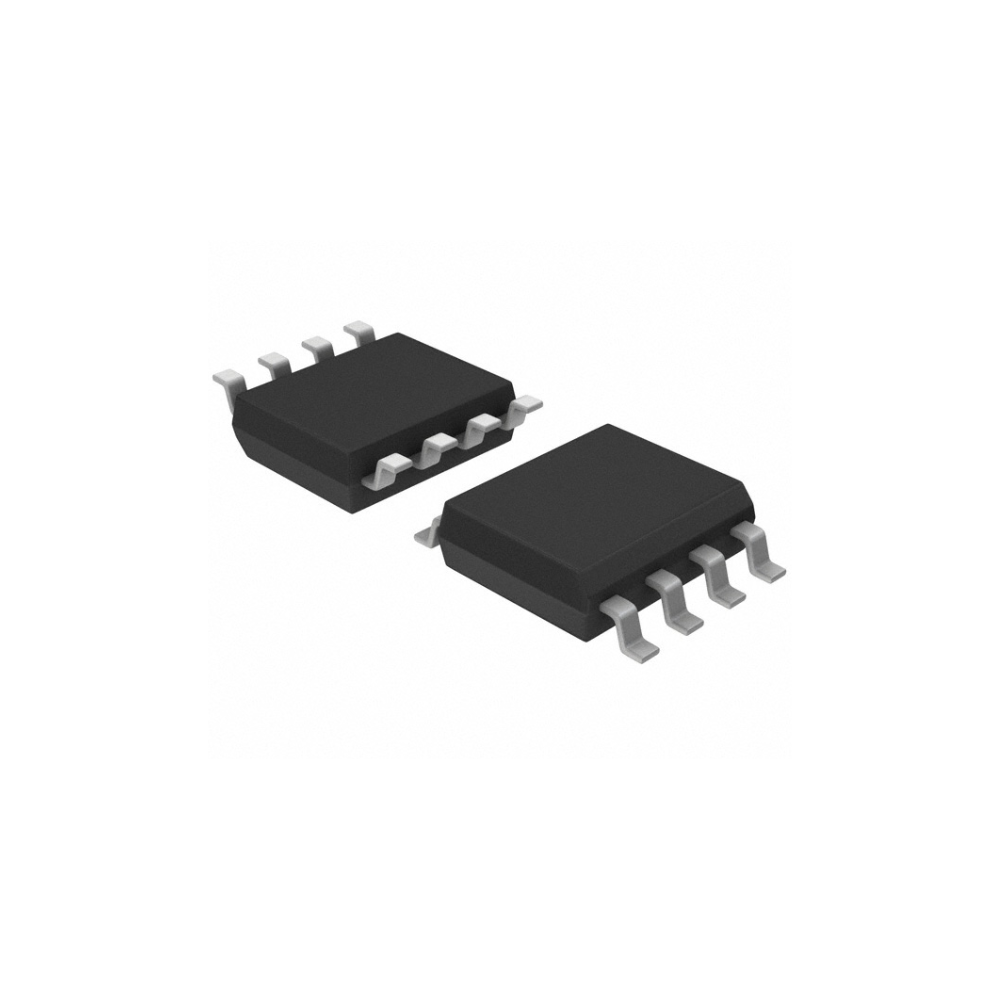

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: IC PWR SWITCH 1:2 8SO
- Manufacturer: Littelfuse
- Length: 0 mm
- Series: -
- Product Status: Obsolete
- Features: Slew Rate Controlled, Status Flag
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
- Supplier Device Package: 8-SO
- Input Type: Non-Inverting
- Output Type: -
- Voltage - Load: 3V ~ 5.5V
- Switch Type: USB Switch
- Number of Outputs: 2
- Ratio - Input:Output: 1:02
- Output Configuration: High Side
- Interface: On/Off
- Voltage - Supply (Vcc/Vdd): Not Required
- Current - Output (Max): 1.1A
- Rds On (Typ): 100mOhm
- Fault Protection: Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO
