S501DC107W2R7A
-
BRVN:BRVN-S501DC107W2R7A
-
MPN:S501DC107W2R7A
-
MFR:
-
Description:CAP 100F 0% +20% 2.7V T/H

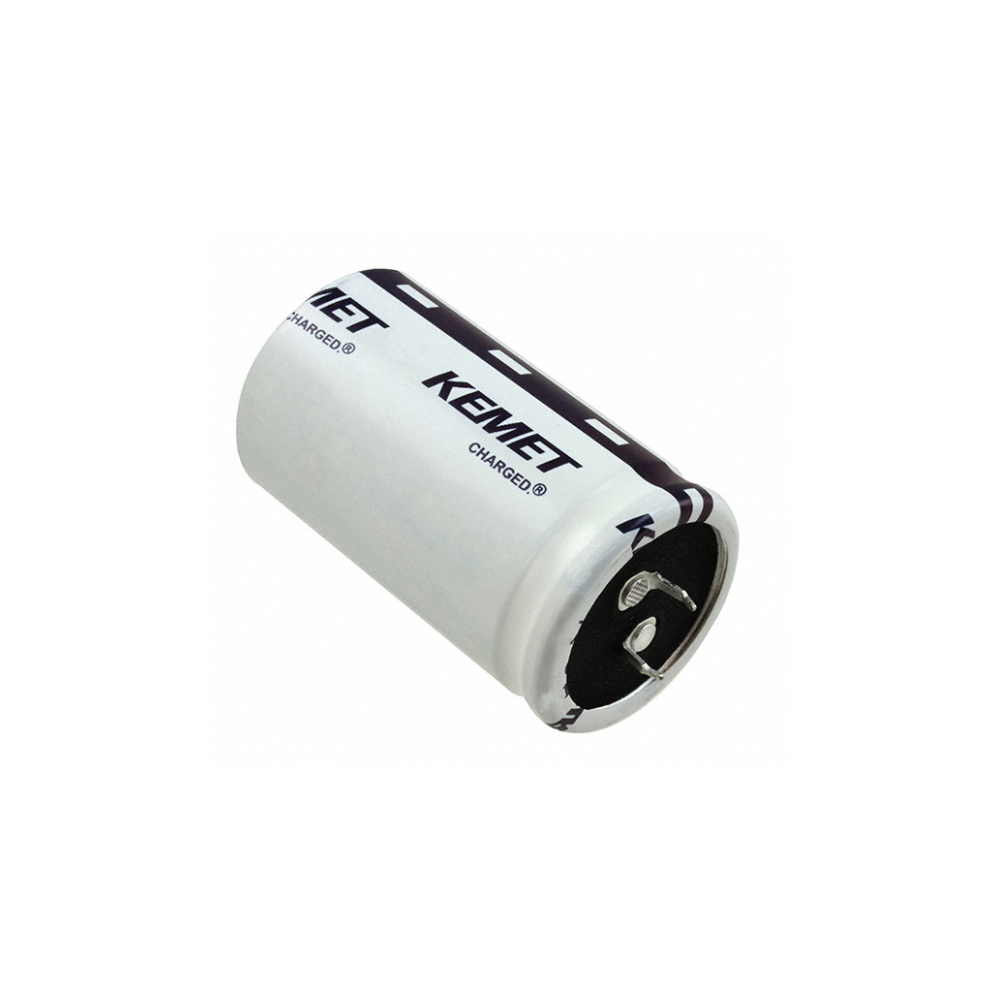

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: CAP 100F 0% +20% 2.7V T/H
- Manufacturer: KEMET
- Length: 0 mm
- Series: S501
- Product Status: Obsolete
- Voltage - Rated: 2.7 V
- Operating Temperature: -40°C ~ 65°C
- Mounting Type: Through Hole
- Package / Case: Radial, Can - Snap-In
- Tolerance: 0%, +20%
- Capacitance: 100 F
- ESR (Equivalent Series Resistance): 3.6mOhm @ 1kHz
- Lifetime @ Temp.: 1000 Hrs @ 65°C
- Size / Dimension: 0.866" Dia (22.00mm)
- Height - Seated (Max): 1.850" (47.00mm)
- Lead Spacing: 0.394" (10.00mm)
- Termination: PC Pins
