SBA520AFC_R1_00001

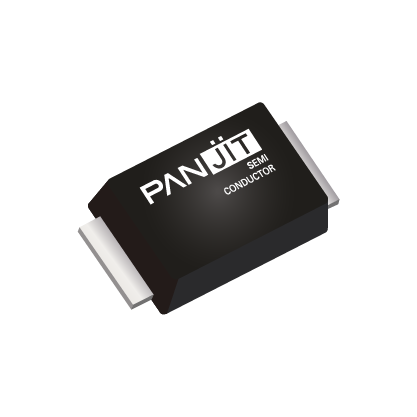

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: DIODE SCHOTTKY 20V 5A SMAF-C
- Manufacturer: PANJIT
- Length: 0 mm
- Series: SSMAFC-50AA
- Product Status: Active
- Mounting Type: Surface Mount
- Package / Case: DO-221AC, SMA Flat Leads
- Supplier Device Package: SMAF-C
- Current - Reverse Leakage @ Vr: 300 µA @ 20 V
- Voltage - Forward (Vf) (Max) @ If: 450 mV @ 5 A
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 20 V
- Current - Average Rectified (Io): 5A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Capacitance @ Vr, F: -
- Operating Temperature - Junction: -55°C ~ 150°C
-
- Datasheet: BRVN-SBA520AFC_R1_00001
-
- ECCN: EAR99
- HTSUS: 8541109000
