SBM3045VCT_T0_00001

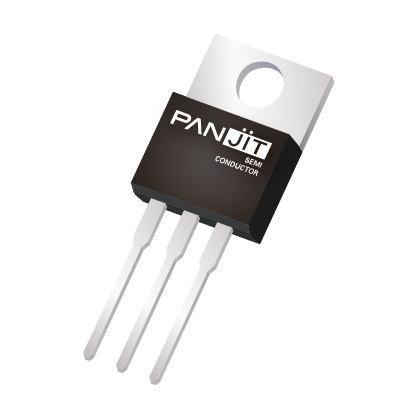

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: TO-220AB, SKY
- Manufacturer: PANJIT
- Length: 0 mm
- Series: SBM-300CTWH
- Product Status: Active
- Mounting Type: Through Hole
- Package / Case: TO-220-3
- Supplier Device Package: TO-220AB
- Current - Reverse Leakage @ Vr: 320 µA @ 45 V
- Voltage - Forward (Vf) (Max) @ If: 480 mV @ 15 A
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 45 V
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Operating Temperature - Junction: -55°C ~ 150°C
- Diode Configuration: 1 Pair Common Cathode
- Current - Average Rectified (Io) (per Diode): 15A
-
- Datasheet: BRVN-SBM3045VCT_T0_00001
-
- ECCN: EAR99
- HTSUS: 8541109000
