SD1020CS_S2_00001
-
BRVN:BRVN-SD1020CS_S2_00001
-
MPN:SD1020CS_S2_00001
-
MFR:
-
Description:SCHOTTKY BARRIER RECTIFIERS

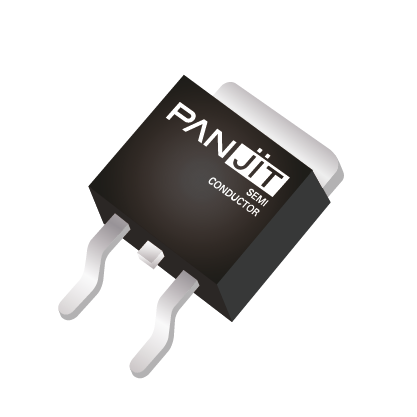

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: SCHOTTKY BARRIER RECTIFIERS
- Manufacturer: PANJIT
- Length: 0 mm
- Series: SD-100CSWH
- Product Status: Active
- Mounting Type: Surface Mount
- Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
- Supplier Device Package: TO-252
- Current - Reverse Leakage @ Vr: 200 µA @ 20 V
- Voltage - Forward (Vf) (Max) @ If: 550 mV @ 5 A
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 20 V
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Operating Temperature - Junction: -55°C ~ 125°C
- Diode Configuration: 1 Pair Common Cathode
- Current - Average Rectified (Io) (per Diode): 10A
-
- ECCN: EAR99
- HTSUS: 8541109000
