SRA2-1F-DC-1-UU
-
BRVN:BRVN-SRA2-1F-DC-1-UU
-
MPN:SRA2-1F-DC-1-UU
-
MFR:
-
Description:SPDT ON-OFF-ON 2 BLUE LED- IP56

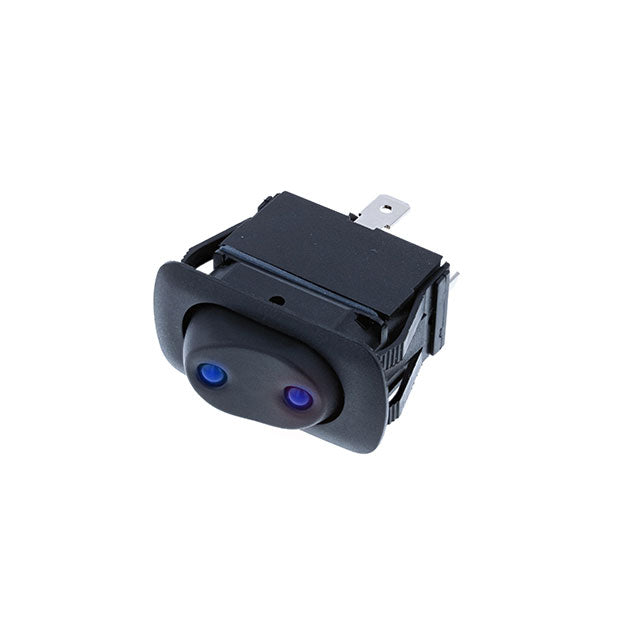

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: SPDT ON-OFF-ON 2 BLUE LED- IP56
- Manufacturer: Switch Components
- Length: 0 mm
- Series: SRA2
- Product Status: Active
- Mounting Type: Panel Mount, Snap-In
- Circuit: SPDT
- Switch Function: On-Off-On
- Current Rating (Amps): 21A (DC)
- Voltage Rating - AC: -
- Voltage Rating - DC: 14 V
- Actuator Type: Oval - Illuminated
- Illumination Type, Color: LED, Blue
- Illumination Voltage (Nominal): 14 VDC
- Termination Style: Quick Connect - 0.250" (6.3mm)
- Panel Cutout Dimensions: Rectangular - 36.60mm x 21.20mm
- Ingress Protection: IP56 - Dust Protected, Water Resistant
- Features: -
- Operating Temperature: -20°C ~ 85°C
- Color - Actuator/Cap: Black
- Actuator Marking: No Marking
-
- Datasheet: BRVN-SRA2-1F-DC-1-UU
