SRC1-1B-DC-1-B
-
BRVN:BRVN-SRC1-1B-DC-1-B
-
MPN:SRC1-1B-DC-1-B
-
MFR:
-
Description:SEALED IP56 SPST OFF-(ON)

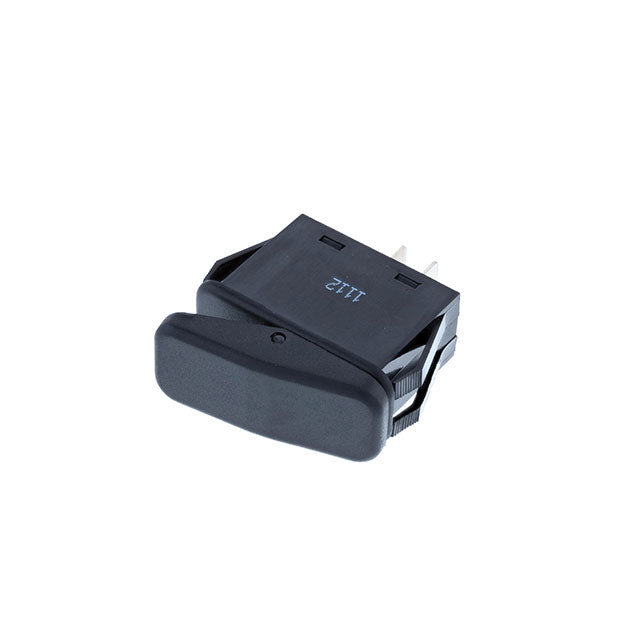

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Packaging Type: Bulk
| Qty | Unit Price | Ext. Price |
|---|---|---|
| 1 | $3.12 | $3.12 |
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: SEALED IP56 SPST OFF-(ON)
- Manufacturer: Switch Components
- Length: 0 mm
- Series: SRC1
- Product Status: Active
- Mounting Type: Panel Mount, Snap-In
- Circuit: SPST-NO
- Switch Function: Off-Mom
- Current Rating (Amps): 10A (DC)
- Voltage Rating - AC: -
- Voltage Rating - DC: 28 V
- Actuator Type: Convex (Reverse V)
- Illumination Type, Color: -
- Illumination Voltage (Nominal): -
- Termination Style: Quick Connect - 0.250" (6.3mm)
- Panel Cutout Dimensions: Rectangular - 36.80mm x 15.30mm
- Ingress Protection: IP56 - Dust Protected, Water Resistant
- Features: -
- Operating Temperature: -20°C ~ 85°C
- Color - Actuator/Cap: Black
- Actuator Marking: No Marking
-
- Datasheet: BRVN-SRC1-1B-DC-1-B
