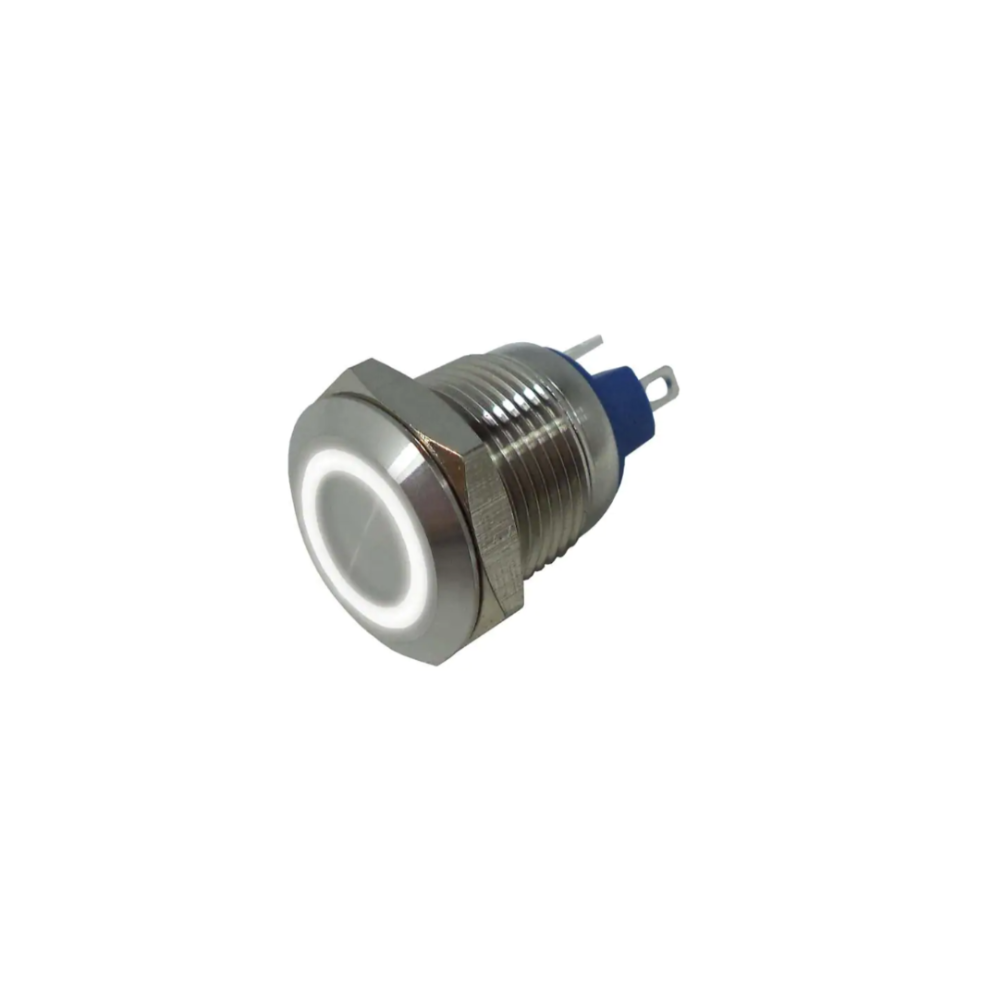

SW-PB7-01LB42BFRW12VM
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: ANTI-VANDAL PUSHBUTTON SWITCH, 1
- Manufacturer: Adam Tech
- Length: 0 mm
- Series: SW
- Product Status: Active
- Type: Anti-Vandal, Illuminated
- Features: -
- Mounting Type: Panel Mount, Front
- Circuit: SPST-NO
- Switch Function: Off-Mom
- Current Rating Amps: 2A (DC)
- Voltage Rating AC: -
- Voltage Rating DC: 36 V
- Actuator Type: Round, Button
- Illumination Type Color: LED, White
- Illumination Voltage Nominal: 12 VAC/DC
- Termination Style: Solder Lug
- Panel Cutout Dimensions: Circular - 12.00mm Dia
- Ingress Protection: IP67 - Dust Tight, Waterproof
- Operating Temperature: -25°C ~ 55°C
- Color Actuator Cap: Silver
- Actuator Marking: No Marking
-
- Datasheet: BRVN-SW-PB7-01LB42BFRW12VM
