SW-T4-2B-E-TA1-01

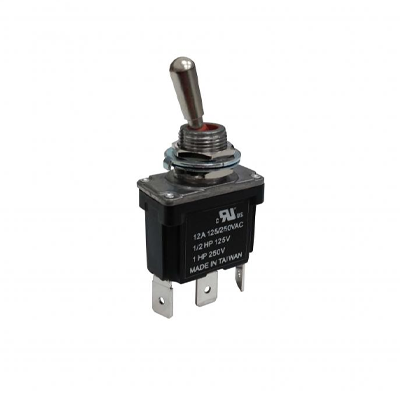

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: IP68 SEALED POWER TOGGLE SWITCH,
- Manufacturer: Adam Tech
- Length: 0 mm
- Series: SW
- Product Status: Active
- Features: -
- Mounting Type: Panel Mount
- Circuit: SPDT
- Switch Function: On-On
- Current Rating Amps: 12A (AC)
- Voltage Rating AC: 125 V
- Voltage Rating DC: -
- Actuator Type: Standard Round with Cap
- Actuator Length: 16.20mm
- Illumination: Non-Illuminated
- Illumination Type Color: -
- Illumination Voltage Nominal: -
- Termination Style: Quick Connect - 0.250" (6.3mm)
- Panel Cutout Dimensions: Circular - 12.00mm Dia
- Bushing Thread: 15/32-32
- Ingress Protection: IP68 - Dust Tight, Waterproof
- Operating Temperature: -30°C ~ 85°C
-
- Datasheet: BRVN-SW-T4-2B-E-TA1-01
