TB1-2G-AC-1
-
BRVN:BRVN-TB1-2G-AC-1
-
MPN:TB1-2G-AC-1
-
MFR:
-
Description:VAC DPDT (ON)-OFF-(ON), 15/32

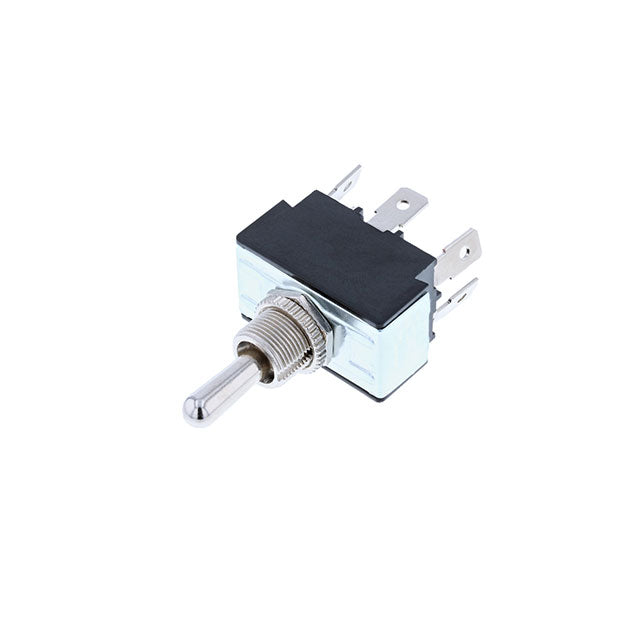

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Packaging Type: Bulk
| Qty | Unit Price | Ext. Price |
|---|---|---|
| 1 | $6.94 | $6.94 |
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: VAC DPDT (ON)-OFF-(ON), 15/32
- Manufacturer: Switch Components
- Length: 0 mm
- Series: TB1
- Product Status: Active
- Mounting Type: Panel Mount
- Circuit: DPDT
- Switch Function: Mom-Off-Mom
- Current Rating (Amps): 10A (AC)
- Voltage Rating - AC: 250 V
- Voltage Rating - DC: -
- Actuator Type: Standard Round
- Actuator Length: 16.50mm
- Illumination: Non-Illuminated
- Illumination Type, Color: -
- Illumination Voltage (Nominal): -
- Termination Style: Quick Connect - 0.250" (6.3mm)
- Panel Cutout Dimensions: Circular - 12.20mm Dia
- Bushing Thread: 15/32-32
- Ingress Protection: -
- Features: -
- Operating Temperature: -
-
- Datasheet: BRVN-TB1-2G-AC-1
