TBS-00-138-03-GR-LF
-
BRVN:BRVN-TBS-00-138-03-GR-LF
-
MPN:TBS-00-138-03-GR-LF
-
MFR:
-
Description:Terminal Blocks

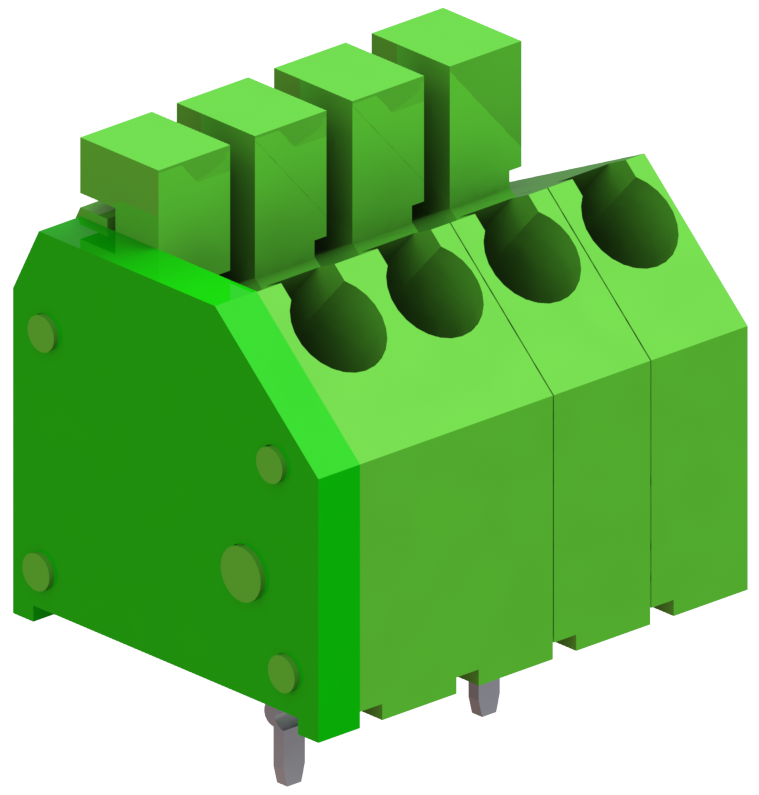

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Packaging Type: Bag
| Qty | Unit Price | Ext. Price |
|---|---|---|
| 182 | $0.35 | $0.35 |
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: Terminal Blocks
- Manufacturer: Major League Electronics
- Length: 0 mm
- Series: TBS-00-138
- Product Status: Active
- Number of Levels: 1
- Positions Per Level: 3
- Pitch: 0.138" (3.50mm)
- Mating Orientation: Vertical with Board
- Current: 5:00 AM
- Voltage: 300 V
- Wire Gauge: 16-20 AWG
- Mounting Type: Through Hole, Kinked Pin
- Wire Termination: Screwless - Push Button Clamp
- Features: Lever Actuated
- Color: Green
-
- Datasheet: BRVN-TBS-00-138-03-GR-LF
