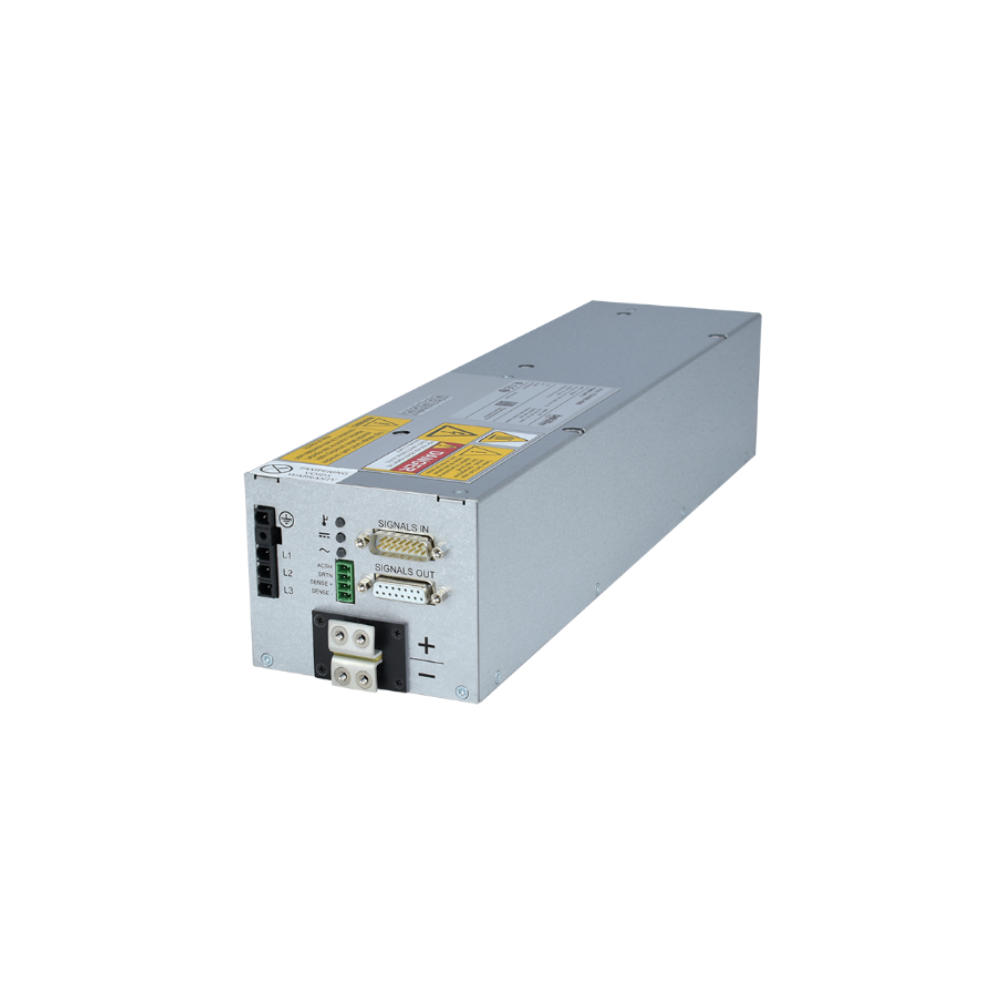

TCP4000-H090

  • BRVN:
    BRVN-TCP4000-H090
  • MPN:
    TCP4000-H090
  • MFR:
  • Description:
    AC/DC CONVERTER 90V 4050W
Datasheet
TCP4000-H090

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.

  • Description: AC/DC CONVERTER 90V 4050W
  • Unit of Measure: EA
  • Manufacturer: Bel Power Solutions
  • Length: 0 mm
  • Series: TCP4000 (4000W)
  • Product Status: Active
  • Type: Front End
  • Applications: ITE (Commercial)
  • Size Dimension: 15.77" L x 4.06" W x 3.33" H (400.6mm x 103.0mm x 84.6mm)
  • Mounting Type: Rack Mount
  • Features: Adjustable Output, IP20, Load Sharing, PFC
  • Voltage Input: 115 ~ 277 VAC, 200 ~ 480 VAC
  • Operating Temperature: 0°C ~ 70°C
  • Approval Agency: -
  • Number of Outputs: 1
  • Voltage Output 1: 90V
  • Voltage Output 2: -
  • Voltage Output 3: -
  • Voltage Output 4: -
  • Voltage Output 5: -
  • Voltage Output 6: -
  • Power Watts: 4050W
  • Voltage Isolation: 1.5 kV
  • Efficiency: 94%
  • Standard Number: -
  • Current Output 1: 45 A
  • Current Output 2: -
  • Current Output 3: -
  • Current Output 4: -
  • Current Output 5: -
