TD1-1A-DC-3-P
-
BRVN:BRVN-TD1-1A-DC-3-P
-
MPN:TD1-1A-DC-3-P
-
MFR:
-
Description:DIECAST SPST OFF-ON PLATED

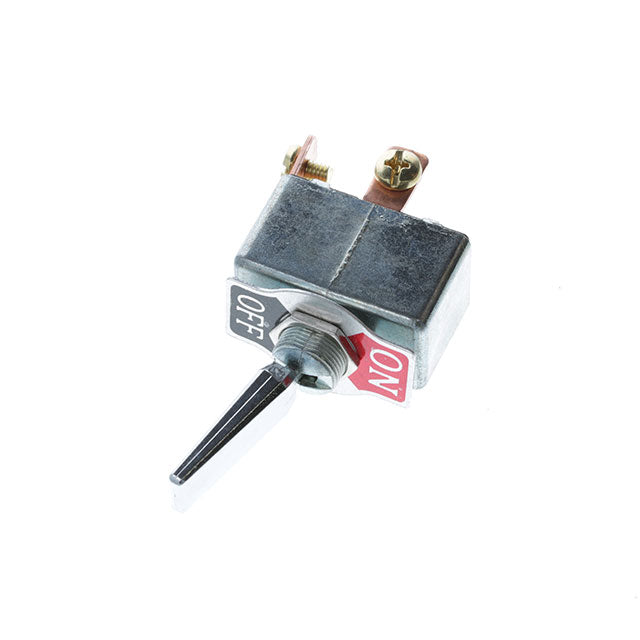

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Packaging Type: Bulk
| Qty | Unit Price | Ext. Price |
|---|---|---|
| 1 | $4.43 | $4.43 |
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: DIECAST SPST OFF-ON PLATED
- Manufacturer: Switch Components
- Length: 0 mm
- Series: TD1
- Product Status: Active
- Mounting Type: Panel Mount
- Circuit: SPST
- Switch Function: On-Off
- Current Rating (Amps): 50A (DC)
- Voltage Rating - AC: -
- Voltage Rating - DC: 12 V
- Actuator Type: Flatted
- Actuator Length: 28.80mm
- Illumination: Non-Illuminated
- Illumination Type, Color: -
- Illumination Voltage (Nominal): -
- Termination Style: Screw Terminal
- Panel Cutout Dimensions: Circular - 12.20mm Dia
- Bushing Thread: M12 x 0.75
- Ingress Protection: -
- Features: -
- Operating Temperature: -20°C ~ 85°C
-
- Datasheet: BRVN-TD1-1A-DC-3-P
