TE7-1A-DC-1-RL
-
BRVN:BRVN-TE7-1A-DC-1-RL
-
MPN:TE7-1A-DC-1-RL
-
MFR:
-

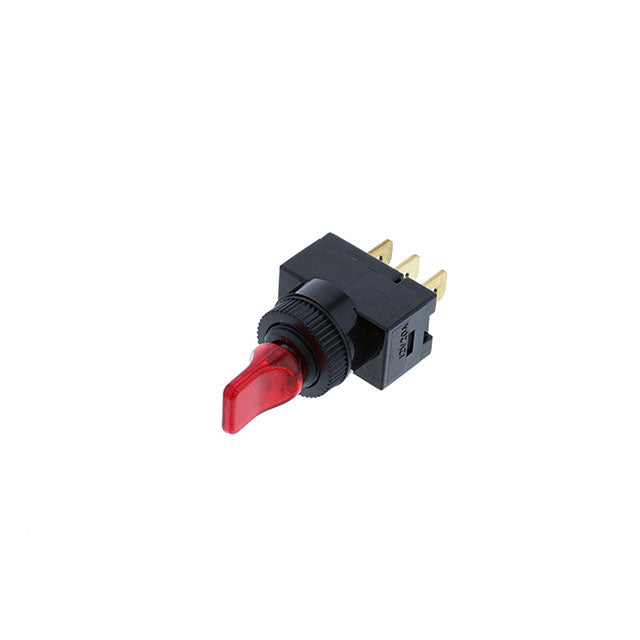

Description:DUCKBILL OFF-ON RED LED
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: DUCKBILL OFF-ON RED LED
- Manufacturer: Switch Components
- Length: 0 mm
- Series: TE7
- Product Status: Active
- Mounting Type: Panel Mount
- Circuit: SPST
- Switch Function: On-Off
- Current Rating (Amps): 20A (DC)
- Voltage Rating - AC: -
- Voltage Rating - DC: 12 V
- Actuator Type: Flatted
- Actuator Length: 17.00mm
- Illumination: Illuminated
- Illumination Type, Color: LED, Red
- Illumination Voltage (Nominal): 12 VDC
- Termination Style: Quick Connect - 0.250" (6.3mm)
- Panel Cutout Dimensions: Circular - 12.20mm Dia
- Bushing Thread: M12 x 1
- Ingress Protection: -
- Features: -
- Operating Temperature: -25°C ~ 85°C
-
- Datasheet: BRVN-TE7-1A-DC-1-RL
