TMR-500MA-T

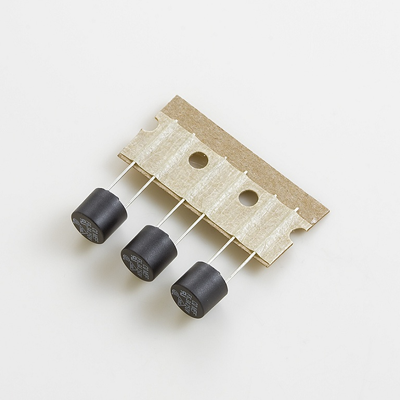

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: THRU HOLE FUSE, TIME DELAY 500MA
- Manufacturer: OptiFuse
- Length: 0 mm
- Series: TMR
- Product Status: Active
- Voltage Rating - AC: 250 V
- Current Rating (Amps): 500 mA
- Approval Agency: cULus
- Package / Case: Radial, Can, Vertical
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Through Hole
- Size / Dimension: 0.335" Dia x 0.327" H (8.50mm x 8.30mm)
- Fuse Type: Board Mount (Cartridge Style Excluded)
- Voltage Rating - DC: -
- Response Time: Slow Blow
- Breaking Capacity @ Rated Voltage: 50A
- Melting I²t: 0.58
- Color: -
-
- Datasheet: BRVN-TMR-500MA-T
