TSHSM-220-D-04-GT-V-P-LF
-
BRVN:BRVN-TSHSM-220-D-04-GT-V-P-LF
-
MPN:TSHSM-220-D-04-GT-V-P-LF
-
MFR:
-
Description:.079 Header

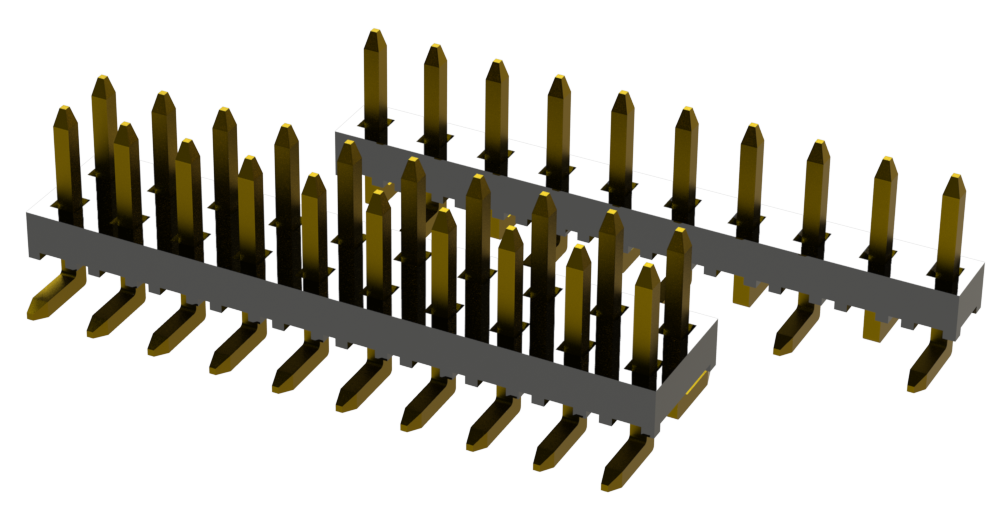

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Packaging Type: Bag
| Qty | Unit Price | Ext. Price |
|---|---|---|
| 33 | $1.93 | $1.93 |
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: .079 Header
- Manufacturer: Major League Electronics
- Length: 0 mm
- Series: -
- Product Status: Active
- Mounting Type: Surface Mount
- Features: Pick and Place
- Material Flammability Rating: -
- Voltage Rating: -
- Current Rating (Amps): 3A
- Number of Positions: 40
- Connector Type: Header
- Contact Type: Male Pin
- Style: Board to Board
- Number of Positions Loaded: All
- Pitch - Mating: 0.079" (2.00mm)
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Insulation Color: -
- Insulation Height: 0.059" (1.50mm)
- Contact Length - Post: -
- Operating Temperature: -40°C ~ 105°C
- Contact Finish - Post: Tin
- Ingress Protection: -
- Shrouding: Unshrouded
- Contact Length - Mating: 0.126" (3.20mm)
- Overall Contact Length: -
- Contact Shape: Square
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA6T), Nylon 6T
-
- Datasheet: BRVN-TSHSM-220-D-04-GT-V-P-LF
