TY-142P

  • BRVN:
    BRVN-TY-142P
  • MPN:
    TY-142P
  • MFR:
  • Description:
    TRANSF 10K AUDIO CTAP/2K CTAP
Datasheet

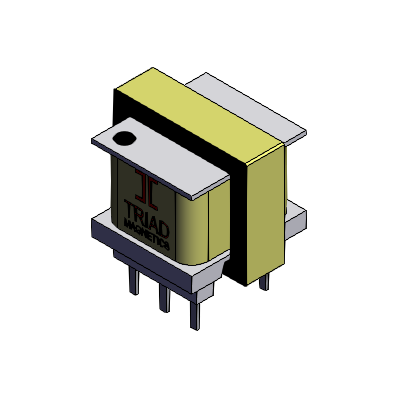

TY-142P

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.

  • Description: TRANSF 10K AUDIO CTAP/2K CTAP
  • Manufacturer: Triad Magnetics
  • Length: 0 mm
  • Series: TY
  • Product Status: Active
  • Mounting Type: Through Hole
  • Operating Temperature: -20°C ~ 85°C
  • Transformer Type: Data/Voice Coupling
  • Turns Ratio - Primary:Secondary: 2.24:1
  • Size / Dimension: 0.812" L x 0.700" W (20.62mm x 17.78mm)
  • Height - Seated (Max): 0.740" (18.80mm)
  • Termination Style: PC Pin
  • Voltage - Isolation: 1500V
  • Approval Agency: -
  • Frequency Range: 200Hz ~ 15kHz
  • Impedance - Primary (Ohms): 10kCT
  • Impedance - Secondary (Ohms): 2kCT
  • DC Resistance (DCR) - Primary: 750Ohm
  • DC Resistance (DCR) - Secondary: 217Ohm
  • Frequency Response: ±2dB
  • Insertion Loss: 1.5dB
  • Return Loss: 26dB
  • Power Level: 100mW
