UF1603FCT_T0_00001
-
BRVN:BRVN-UF1603FCT_T0_00001
-
MPN:UF1603FCT_T0_00001
-
MFR:
-
Description:ULTRA FAST RECOVERY RECTIFIERS

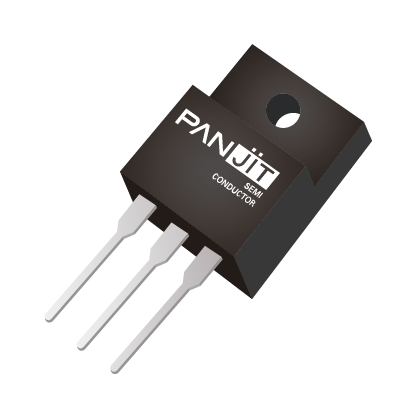

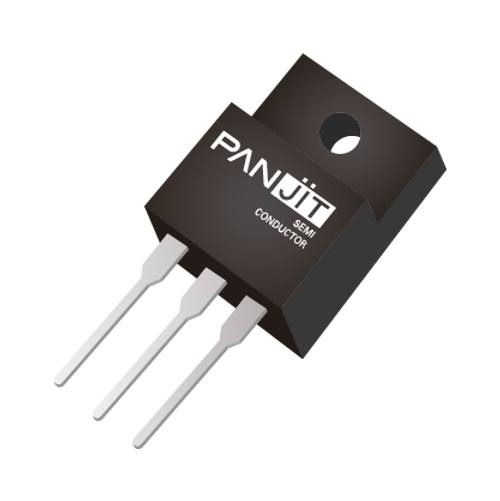

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: ULTRA FAST RECOVERY RECTIFIERS
- Manufacturer: PANJIT
- Length: 0 mm
- Product Status: Not For New Designs
- Mounting Type: Through Hole
- Package / Case: TO-220-3 Full Pack
- Supplier Device Package: ITO-220AB
- Current - Reverse Leakage @ Vr: 1 µA @ 300 V
- Voltage - Forward (Vf) (Max) @ If: 1.3 V @ 8 A
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 300 V
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 50 ns
- Operating Temperature - Junction: -65°C ~ 150°C
- Diode Configuration: 1 Pair Common Cathode
- Current - Average Rectified (Io) (per Diode): 16A
