UF25GC23-BTHNR

  • BRVN:
    BRVN-UF25GC23-BTHNR
  • MPN:
    UF25GC23-BTHNR
  • MFR:
  • Description:
    FAN AXIAL 254X89MM 230VAC IP55
Datasheet
UF25GC23-BTHNR

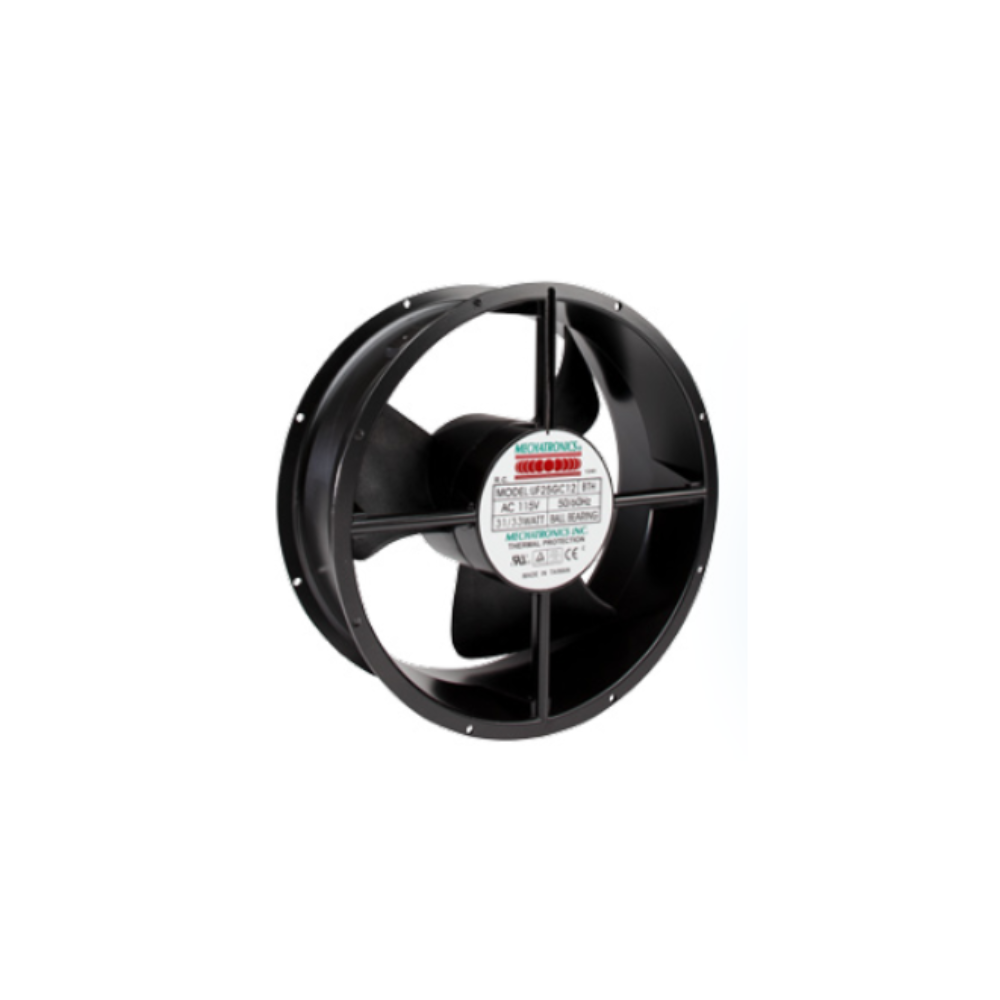

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.

  • Description: FAN AXIAL 254X89MM 230VAC IP55
  • Manufacturer: Mechatronics
  • Length: 0 mm
  • Series: UF25GC
  • Product Status: Active
  • Size / Dimension: Round - 254mm Dia
  • Features: Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)
  • Operating Temperature: -40 ~ 158°F (-40 ~ 70°C)
  • Voltage - Rated: 230VAC
  • Width: 89.00mm
  • Air Flow: 550.0 CFM (15.40m³/min)
  • Static Pressure: 0.400 in H2O (99.6 Pa)
  • Bearing Type: Ball
  • Fan Type: Tubeaxial
  • Noise: 55.0dB(A)
  • RPM: 1650 RPM
  • Termination: 2 Terminals
  • Ingress Protection: IP55 - Dust Protected, Water Resistant
  • Approval Agency: CE, cUL, TUV, UL
  • Weight: 4.1 lbs (1.9 kg)
  • Power (Watts): 33.00W
