WSU060-2000-R
-
BRVN:BRVN-WSU060-2000-R
-
MPN:WSU060-2000-R
-
MFR:
-
Description:AC/DC WALL MNT ADAPTER 5.9V 12W

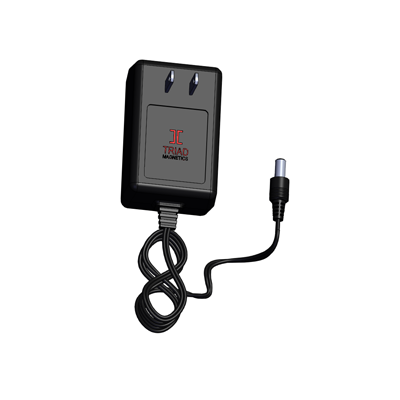

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: AC/DC WALL MNT ADAPTER 5.9V 12W
- Manufacturer: Triad Magnetics
- Length: 0 mm
- Series: WSU
- Product Status: Active
- Input Type: Fixed Blade
- Operating Temperature: 0°C ~ 40°C
- Size / Dimension: 2.80" L x 1.69" W x 1.18" H (71.0mm x 43.0mm x 30.0mm)
- Current - Output (Max): 2A
- Voltage - Output: 5.9V
- Power (Watts): 12 W
- Efficiency: Level VI
- Approval Agency: cETLus
- Region Utilized: North America
- Form: Wall Mount (Class II)
- Voltage - Input: 90 ~ 264 VAC
- No Load Power Consumption: 100mW (Max)
- Polarization: Negative Center
- Applications: ITE (Commercial)
- Output Connector: Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm
- Cord Length: 72" (1.83m)
- Input Connector: NEMA 1-15P
- Standard Number: -
-
- Datasheet: BRVN-WSU060-2000-R
