WSU135-1770-R

  • BRVN:
    BRVN-WSU135-1770-R
  • MPN:
    WSU135-1770-R
  • MFR:
  • Description:
    AC/DC WALL MNT ADAPTER 13.5V 24W
Datasheet
WSU135-1770-R

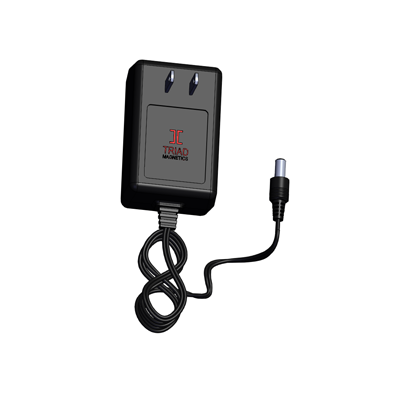

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.

  • Description: AC/DC WALL MNT ADAPTER 13.5V 24W
  • Manufacturer: Triad Magnetics
  • Length: 0 mm
  • Series: WSU
  • Product Status: Active
  • Input Type: Fixed Blade
  • Operating Temperature: 0°C ~ 40°C
  • Size / Dimension: 3.03" L x 1.89" W x 1.22" H (77.0mm x 48.0mm x 31.0mm)
  • Current - Output (Max): 1.77A
  • Voltage - Output: 13.5V
  • Power (Watts): 24 W
  • Efficiency: Level VI
  • Approval Agency: cETLus
  • Region Utilized: North America
  • Form: Wall Mount (Class II)
  • Voltage - Input: 90 ~ 264 VAC
  • No Load Power Consumption: 100mW (Max)
  • Polarization: Negative Center
  • Applications: ITE (Commercial)
  • Output Connector: Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm
  • Cord Length: 60" (1.52m)
  • Input Connector: NEMA 1-15P
  • Standard Number: -
