ZMSL03130T10LLC

  • BRVN:
    BRVN-ZMSL03130T10LLC
  • MPN:
    ZMSL03130T10LLC
  • MFR:
  • Description:
    SWITCH SNAP ACTION SPDT 3A 125V
Datasheet
ZMSL03130T10LLC

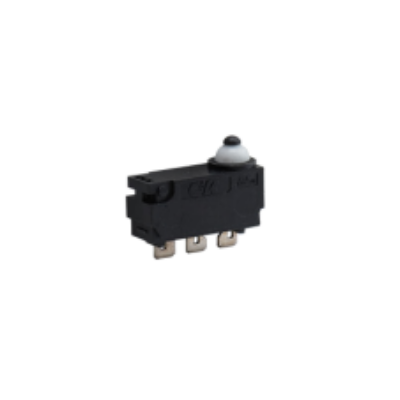

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.

  • Description: SWITCH SNAP ACTION SPDT 3A 125V
  • Unit of Measure: EA
  • Manufacturer: C&K Components
  • Length: 0 mm
  • Series: ZMS
  • Product Status: Obsolete
  • Mounting Type: Through Hole, Right Angle
  • Circuit: SPDT
  • Switch Function: On-Mom
  • Current Rating Amps: 3A (AC/DC)
  • Voltage Rating AC: 125 V
  • Voltage Rating DC: 12 V
  • Actuator Type: Lever, Straight
  • Termination Style: PC Pin
  • Ingress Protection: IP65 - Dust Tight, Water Resistant
  • Features: Support Posts
  • Operating Temperature: -40°C ~ 85°C
  • Operating Force: 195gf
  • Release Force: 55gf
  • Pretravel: 0.152" (3.85mm)
  • Differential Travel: 0.020" (0.5mm)
  • Overtravel: 0.053" (1.35mm)
